Air Cylinder CJ1
-
・For the double acting type, the piping direction
of the fitting on the rod cover side varies within a range of 90°.
PDF
Pin Cylinder CJP
-
・A short-stroke miniature cylinder with a shorter overall length
The installation space can be significantly reduced.
Thus, the machine can be made more compact.
・Rod end cap can now be ordered with the cylinder.
・One-touch fitting can be connected. (Panel mount type)
・Applicable for the change of the rod end shape (-XA□) (Simple specials)
・16 mm bore size is now available.
(Changed from the existing product: 15 mm)
Specifications and dimensions are the same as the existing product.
Pin Cylinder CJP2/CDJP2/CJP
-
・Two auto switches can be mounted even on the ø4, 5 st.
・A ø2 One-touch fitting and a speed controller can be connected.
・With auto switch (CDJP2 series: CDJP2)

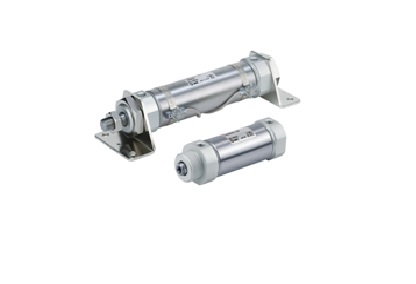

Air Cylinder CJ2/CDJ2
-
・Double foot and head flange have been added to the available mounting
types.
・Easy fine adjustment of auto switch position
・The auto switch mounting
type, band, or rail can be selected with the model number.
・Part numbers with a rod end bracket and/or pivot bracket are available.
(It is not necessary to order a bracket for the applicable cylinder separately.)
・With auto switch (CDJ2-Z series: CDJ2, CDJ2W, CDJ2K, CDJ2Z, CDJ2ZW,
CDJ2RA, CDJ2RK)
Air Cylinder CJ2 Compact Type CJ2-X3175
-
· Compact, Lightweight
Overall length Max. 25% reduction
Weight Max. 27% reduction
· New rail type auto switch mounting bracket
Applicable to the D-M9 (Direct mounting possible)
· The specifications are the same as those of the existing CJ2 series.
Air Cylinder JCM/JCDM
-
・A foot type and a flange type have been added. [New]
・Overall length shortened by up to 97 mm
・Weight: Max. 54% lighter (0.69 kg→0.32 kg)
・Various cover types available
・Port size: M5, Rc1/8, and NPT1/8 available
・Male and female rod ends available
・With auto switch (JCDM series: JCDM)
Air Cylinder CM2
-
・Cylinder with rod end bracket is standardized.
・Interchangeable in mounting with the existing model
・Various mounting bracket options
Mounting brackets suitable for various installation conditions
Improved mounting flexibility
・Part numbers for products with a rod end bracket and/or a pivot bracket
available
It is not necessary to order a bracket for the applicable cylinder separately.
・Easy fine adjustment of auto switch position
・Overall length is shortened with boss-cut type.
・With auto switch (CDM2-Z1)
Longer Life Cylinder CM2-XB24
-
・New technology offers at least 4 times better durability
The maintenance intervals will be extended
・Employs the same specification and dimensions as
the existing models, CM2 Air Cylinder series
Air Cylinder CM2/CDM2
-
・Female rod end is available as standard.
・Easy fine adjustment of auto switch position
・Single clevis and trunnion pivot brackets are available.
・Part numbers with a rod end bracket and/or pivot bracket are available.
(It is not necessary to order a bracket for the applicable cylinder separately.)
・With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW,
CDM2R, CDM2RK, CDM2□P, CDBM2)
Air Cylinder/Short Type CM3/CDM3
-
・Up to 66 mm shorter, up to 21% lighter
(Compared with the CM2 series)
・Female rod end is available as standard.
・With auto switch (CDM3 series: CDM3)

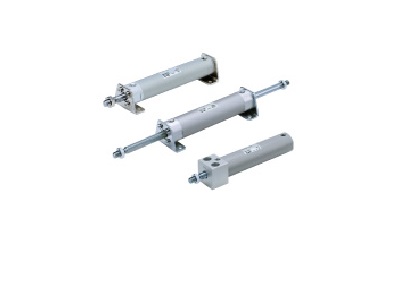

Air Cylinder CG1
-
・Improved piping flexibility
・Piping can be connected every 90 degrees (4 positions). (Made to order:
XC3)
・Cylinder with rod end bracket is standardized.
・Interchangeable in mounting with the existing model
・Various mounting bracket options
・Part numbers for products with a rod end bracket and/or a pivot bracket
It is not necessary to order a bracket for the applicable cylinder
separately.
Air Cylinder CG1/CDG1
-
・Female rod end is available as standard.
・Easy fine adjustment of auto switch position
・No trunnion mounting female thread has been added to the basic type.
・Part numbers with a rod end bracket and/or pivot bracket are available.
(It is not necessary to order a bracket for the applicable cylinder separately.)
・With auto switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW,
CDG1R, CDG1KR, CDBG1)
Air Cylinder/Short Type CG3/CDG3
-
・Up to 51 mm shorter, up to 24% lighter (Compared with the CG1 series)
・Female rod end is available as standard.
・With auto switch (CDG3 series: CDG3)
