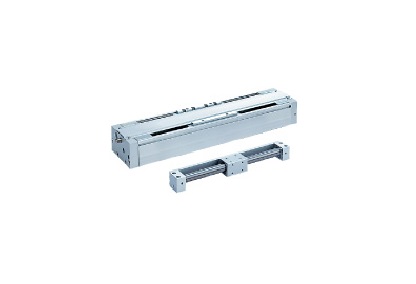

Sine Rodless Cylinder REA
-
・Allows the high-speed transfer of a workpiece which must avoid
shock/impact
・Maximum speed: 300 mm/s
PDF
Sine Rodless Cylinder REB
-
・Allows the high-speed transfer of a workpiece which must avoid
shock/impact
・Maximum speed: 600 mm/s

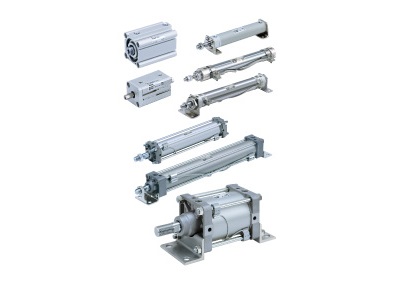

Smooth Cylinder CJ2Y/CM2Y/CG1Y/MBY/CA2Y/CS2Y/CQSY/CQ2Y
-
・Reduces stick-slip in a low-speed range
・Stable operation is possible even at a low speed of 5 mm/s.
(Measurement based on JIS B 8377)
・Low sliding is possible even in bi-directional operations.
・Lightweight/Improved functions (The new structure is equivalent
to the standard models.)
・Interchangeable with the standard models
・With auto switch (CDJ2Y-Z series: CDJ2Y, CDM2Y-Z series: CDM2Y-Z,
CDG1Y-Z series: CDG1Y, MDBY-Z series: MDBY, CDA2Y-Z
series: CDA2Y, CDS2Y series: CDS2Y, CDQSY series: CDQSY,
CDQ2Y-Z series: CDQ2Y)
Low Speed Cylinder CJ2X/CM2X/CQSX/CQ2X/CUX
-
・Reduces adhesion/quick extension
・Smooth operation is possible even at 0.5 mm/s.
(1 mm/s for ø16 or smaller)
・The minimum operating pressure has been reduced by half.
(Compared to the previous version)
・Improved functions (The new structure is equivalent to the standard
models.)
・Interchangeable with the standard models
・With auto switch (CDJ2X-Z series: CDJ2X-Z, CDM2X-Z series: CDM2X,
CDQSX series: CDQSX, CDQ2X series: CDQ2X, CDUX series: CDUX)
Low Friction Cylinder/Metal Seal MQQ/MQM/MQP
-
・Covers a range of driving speeds and output controls not possible with standard
cylinders thanks to its metal seal structure with minimal sliding resistance
High Power Cylinder RHC
-
・Provides 10 to 20 times the energy absorption capacity of general
purpose cylinders (CG1 series)
・Smooth cushioning from high-speed operation (3000 mm/s) with light
loads to low/medium-speed operation with heavy loads
・XC93: With greater water resistance + a stable lubrication function
5 times stronger against water (liquids) than the standard model (RHC series)
3 Position Cylinder RZQ
-
・Equipped with an intermediate stop mechanism
・Two-stage strokes are possible with just a minute extension.
Air Servo Cylinder IN-777
-
・Capable of air cylinder multipoint positioning and control
・Fast response and high positioning repeatability
Positioning repeatability: ±0.5 mm
・Easier maintenance due to unitization
・Built-in self-diagnosis function (LED lamp and signal output)
・Emergency stop of the piston when the air or power supply is cut
Air Shocker XT316
-
・The air shocker is a pneumatic piston type shock generator.
Removes plugging due to bridging or adhesion of bulk material
inside a hopper or chute.
・Variable impact force
・Strong, stable impact force
・No lubrication required
