Stainless Steel Cylinder CJ5-S/CDJ5-S/CG5-S/CDG5-S
-
・Applicable for use in an environment with water splashing
・With auto switch (CDJ5-S series: CDJ5-S, CDG5-S series: CDG5-S)
PDF
Material: Stainless Steel, Foot Bracket,Flange Bracket, Single Knuckle Joint, Double Knuckle Joint CJ2, CM2, CG1, CQ2
-
・External dimensions and mounting dimensions are interchangeable with
the standard type.
・Post-mounting is possible.
・Bracket applicable cylinders: CJ2, CM2, CG1, CQ2
Hygienic Design Cylinder HY□/HYD□
-
・Improved water resistant air cylinder with an easily washable
configuration
・5 times the lifespan of the improved water resistant
cylinder (SMC comparison)
・With auto switch (HYDB series: HYDB, HYDQB
series: HYDQB, HYDC series: HYDC, HYDG series: HYDG)
Water Resistant Cylinder (Pneumatic/Hydraulic)
-
・Can be used in environments where contact with water or coolant occurs
・With water resistant 2-color indicator auto switch
・Suitable for factory machinery, food manufacturing machinery, car
washers, etc.
Cylinder with Stable Lubrication Function (Lube-retainer)
-
・Applicable to operation in micro-powder (20 to 100 μm) /general
environments
・Durability is 4 times stronger than the standard model in micro-powder
environments.
・The overall length and mounting are the same as those of the standard model.
(Except for some models)
・Grease film is formed on the piston rod surface to improve durability.
・Prevents the entry of dust and foreign matter
・The number of operating cycles can be improved even in general environments.

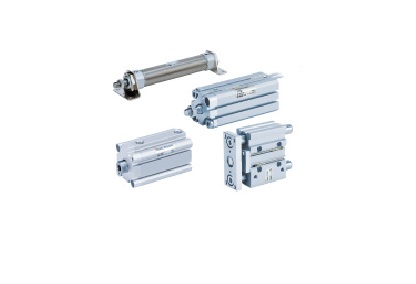

Dust Resistant Cylinder CM2/CG1/MB/CQ2/MGP-XC4□
-
・CM2-XC4□ has been added. New
・Up to 6 times more durable in dusty environments
Applicable powder particle size: 20 to 100 μm
Suitable for environments with ceramic powder, toner powder, paper
powder, and metallic powder
∗ Excludes weld spatter
・Can be selected according to the application
A Lube-retainer (stable lubrication function) and a heavy-duty scraper
can be mounted on the piston rod.
For the MGP series compact guide cylinder, they can also be mounted
on the guide rod (one or both sides).
・The rod cover assembly can be replaced according to the operating
environment.
∗ Only for bore sizes ø20, ø25, and ø32 of the CQ2 series

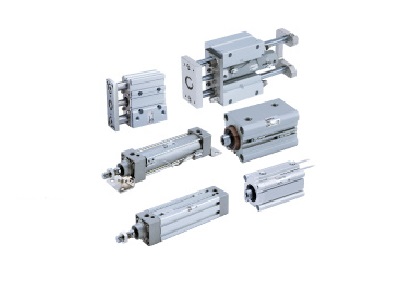

Dust Resistant Cylinder MXQ-XC4A
-
・Compatible with environments where powder particles of 20 to 50 μm in
diameter, such as ceramic powder, toner powder, paper powder, metal
powder (excluding welding spatter), etc., are present
・4 times more durable than the standard model
Lube-retainers are installed on the guide unit and rod cover.
This prevents the entry of dust and foreign matter.
・Dimensions and workpiece mounting dimensions are interchangeable
with the standard product.
Dust Resistant Cylinder
-
・Applicable for environments with flying micro-powder such as ceramic
powder, toner powder, paper powder, and metallic powder (Excludes
weld spatter)
・4 times stronger than the standard model
・2 Lube-retainers on the rod cover prevent micro-powder of 30 μm
or smaller from entering.
・The Lube-retainers create a coat of grease on the piston
rod for improved durability.
Measures Against Dust: Made to Order -XC4, XC35
・Cylinders with a heavy duty scraper on the wiper ring are suitable for use
in extremely dusty environments and those where they will be exposed to
earth or sand, such as in die-casted equipment, construction machinery,
and industrial vehicles
in extremely dusty environments and those where they will be exposed to
earth or sand, such as in die-casted equipment, construction machinery,
and industrial vehicles
Heat Resistant/Cold Resistant: Made to Order -XB6, XB7, XB14, XC5
・Air cylinder for use in low-temperature and high-temperature
environments
